Alberi scanalati e relative boccoleAlberi scanalati e relative boccole

Barre Cannelle



Douille cannelle

UNI 221 numero CATOR D d C numero delle scanalature peso netto al metro   numero CATOR diametro esterno lunghezza numero CATOR diametro esterno lunghezza
Z kg/mt   E L E L
mm mm mm   mm mm mm mm
11 RVM227 14,00 11,00 3,00 6 0,95   RV186 25,00 40,00
13 RVM226 16,00 13,00 3,50 6 1,28   RV80/1 28,00 40,00
16 RVM145 20,00 16,00 4,00 6 1,90   RV78 30,00 50,00
20X17 RVM229 20,00 17,00 2,00 12 1,90   RV80 30,00 40,00
18 RVM147 22,00 18,00 5,00 6 2,45   RV79 32,00 50,00
21 RVM144 25,00 21,00 5,00 6 3,13   RV71 38,00 60,00
23 RVM148 28,00 23,00 6,00 6 3,90   RV72 38,00 60,00
26/20 RVM146 30,00 26,00 6,00 6 4,60   RV73 42,00 60,00
26 RVM149 32,00 26,00 6,00 6 5,00   RV74 42,00 60,00
28 RVM221 34,00 28,00 7,00 6 5,80   RV76 45,00 60,00
32 RVM222 38,00 32,00 6,00 8 7,40   RV187 55,00 60,00
36 RVM223 42,00 36,00 7,00 8 9,40   RV188 60,00 70,00
42 RVM224 48,00 42,00 8,00 8 12,30   RV189 65,00 70,00
46 RVM225 54,00 46,00 9,00 8 15,30   RV190 70,00 80,00 RV190/100 70,00 100,00
  RVM-A 60,00 52,00 10,00 8 19,07   RV-A 100,00 120,00

1.1/8 RVM141 28,52 23,65 7,03 6 4,25   RV61 38,00 60,00 RV62 38,00 80,00
1.3/8 RVM142 34,87 28,14 8,64 6 6,70   RV65 48,00 70,00 RV67 48,00 100,00
1.3/4 RVM143 44,37 36,25 11,00 6 10,20   RV69 60,00 80,00 RV70 60,00 100,00
  • materiale: C45 trafilato
  • materiale: fornibile anche in altri materiali (es. inox)

  • alberi scanalati: lunghezza standard mm. 1.000,00 (altre misure a richiesta)

Reductions unifiee pour prises de force

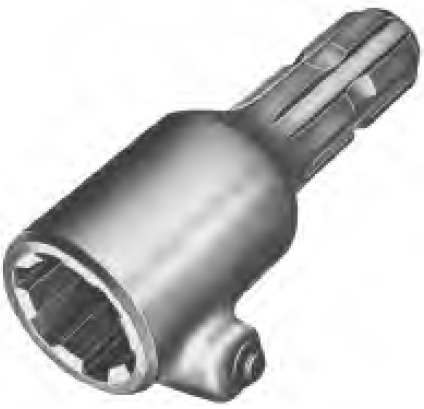

Reductions unifiees pour prises de force avec poussoir

numero CATOR profilo esterno profilo interno lunghezza totale mm. numero CATOR profilo esterno profilo interno lunghezza totale mm.
RV 1 1" 1/8 1" 3/8 140 RV 30 1" 1/8 1" 1/8 135
RV 2 1" 3/8 1" 3/8 150 RV 31* 1" 1/8 1" 3/8 150
RV 3 1" 1/8 1" 1/8 140 RV 32* 1" 3/8 1" 3/8 150
RV 4 1" 3/8 1" 1/8 140 RV 33* 1" 3/8 1" 3/4 165
RV 5 1" 3/8 1" 3/4 160 RV 33/1* 1" 3/8 1" 3/4 27 cave 165
RV 6 1" 3/8 21 UNI 221 140 RV 33/2* 1" 3/8 1" 3/4 20 cave 165
RV 7 1" 3/8 23 UNI 221 140 RV 33/3* 1" 3/8 21 scanalature 1" 3/4 165
RV 8 1" 3/8 26 UNI 220 140 RV 33/4* 1" 3/8 21 scanalature 1" 3/4 20 cave 165
RV 9 1" 3/8 26 UNI 221 145 RV 34* 1" 3/4 1" 3/8 160
RV 10 1" 3/8 28 UNI 220 145 RV 34/1* 1" 3/4 1" 3/8 21 cave 160
RV 11 1" 3/8 28 UNI 221 145 RV 34/2 1" 3/4 20 scanalature 1" 3/8 160
RV 12 1" 3/4 1" 3/4 165 RV 34/4* 1" 3/4 20 scanalature 1" 3/8 21 cave 160
RV 13 1" 3/4 1" 3/8 155 RV 35* 1" 3/4 1" 3/4 175
RV 14 1" 3/8 mm. 19X22X3,5 10 cave 120 RV 35/2* 1" 3/4 1" 3/4 20 cave 175
RV 15 1" 3/8 1" 3/8 – 21 cave 150 RV 35/5 1" 3/4 20 scanalature 1" 3/4 175
RV 16 1" 3/8 16 UNI 221 120 RV 35/6* 1" 3/4 20 scanalature 1" 3/4 20 cave 175
RV 17 1" 3/4 1" 3/8 – 21 cave 155 RV 36* 1" 3/8 1" 3/8 21 cave 150
RV 18 1" 3/8 mm. 20x17 12 cave DIN 5482 120 RV 37* 1" 3/8 21 scanalature 1" 3/8 150
RV 19 1" 3/8 18 UNI 221 120 RV 38* 1" 3/8 21 scanalature 1" 3/8 21 cave 150
RV 20 1" 3/8 13 UNI 221 120 RV 39 1" 3/8 1" 3/8 230
  RV 39/1E 1" 3/8 1" 3/8 200
RV 41/P 1" 3/8 1" 1/8 135
* = trempees


Reductions avec trou cylindrique sans rainure



Reductions unifiee pour prises de force avec boulon de blocage

numero CATOR profilo esterno foro tolleranza H 8 mm. profondità foro mm. lunghezza totale mm. numero CATOR profilo esterno profilo interno lunghezza totale mm.
RV 21 1" 3/8 20 30 120 RV 31B* 1" 1/8 1" 3/8 150
RV 22 1" 3/8 25 30 120 RV 38B* 1" 3/8 21 scanalature 1" 3/8 21 cave 150
RV 23 1" 3/8 39 30 120 RV 39EB 1" 3/8 1" 3/8 230
RV 24 1" 3/8 35 30 120 RV 40* 1" 3/8 21 scanalature 1" 3/8 150
RV 24/40 1" 3/8 40 30 130 RV 41 1" 3/8 1" 1/8 150
RV 24/45 1" 3/8 45 30 135 RV 42* 1" 3/8 1" 3/8 150
  RV 43 1" 3/8 1" 3/4 165

Reductions avec trou cylindrique et rainure

RV 43/1* 1" 3/8 1" 3/4 27 cave 165
RV 43/2* 1" 3/8 1" 3/4 20 cave 165
numero CATOR profilo esterno foro tolleranza H 8 mm. profondità foro mm. lunghezza totale mm. RV 43/3 1" 3/8 21 scanalature 1" 3/4 165
RV 26 1" 3/8 20 60 145 cava 6x2,8 RV 43/4* 1" 3/8 21 scanalature 1" 3/4 20 cave 165
RV 27 1" 3/8 25 60 145 cava 8x3,3 RV 44* 1" 3/4 1" 3/8 160
RV 28 1" 3/8 30 60 145 cava 8x3,3 RV 44/1* 1" 3/4 1" 3/8 21 cave 160
RV 28/32 1" 3/8 32 60 150 cava 10x3,8 RV 44/2* 1" 3/4 20 scanalature 1" 3/8 160
RV 29 1" 3/8 35 60 160 cava 10x3,8 RV 44/4* 1" 3/4 20 scanalature 1" 3/8 21 cave 160
RV 29/38 1" 3/8 38 60 160 cava 10x3,8 RV 45* 1" 3/4 1" 3/4 175
RV 29/40 1" 3/8 40 60 165 cava 12x3,5 RV 45/2* 1" 3/4 1" 3/4 20 cave 175
RV 29/45 1" 3/8 45 60 170 cava 14x4 RV 45/5* 1" 3/4 20 scanalature 1" 3/4 175
  RV 45/6* 1" 3/4 20 scanalature 1" 3/4 20 cave 175
RV 46* 1" 3/8 1" 3/8 21 cave 150
RV 47 1" 3/8 diam. 25 profondità 60 150
RV 48 1" 3/8 diam. 30 profondità 60 150
RV 49 1" 3/8 diam. 35 profondità 60 165
RV 49/32 1" 3/8 diam. 32 profondità 60 165
RV 49/38 1" 3/8 diam. 38 profondità 60 165
RV 49/40 1" 3/8 diam. 40 profondità 60 165
RV 50 1" 3/8 21 UNI 221 150
RV 51 1" 3/8 23 UNI 221 150
RV 52 1" 3/8 26 UNI 221 150
RV 53 1" 3/8 28 UNI 221 150
RV 54 1" 3/8 28 UNI 221 150
* = trempees



Joint avec boulon de blocage



Moyeux canneles avec boulon de blocage

numero CATOR profilo interno diam flangia lunghezza totale mm. numero CATOR profilo interno diam flangia lunghezza totale mm.
RV 55p 1" 3/8 68 80 RV 55 1" 3/8 70 80
  RV 55B 1" 3/8 78 65

Moyeux canneles avec poussoir

RV 56 1" 3/8 120 80
RV 56/1 1" 1/8 120 80
numero CATOR profilo interno diam flangia lunghezza totale RV 56/21 1" 3/8 21 scanalature 120 80
RV 58 1" 3/8 70 80 RV 57 1" 3/4 150 80
RV 59 1" 3/8 120 80 RV 57/2 1" 3/4 20 scanalature 150 80
RV 60 1" 3/4 150 80


Douille cannele avec boulon de blocage

Douille cannele avec poussoir

numero CATOR profilo interno lunghezza totale lunghezza brocciatura numero CATOR profilo interno lunghezza totale lunghezza brocciatura
RV 42/1 1" 3/8 65 65 RV 32/1 1" 3/8 65 65
RV 81 1" 3/8 80 80 RV 86 1" 3/8 80 80
RV 82 1" 3/4 100 100 RV 87 1" 3/4 100 100
RV 82/2 1" 3/4 20 cave 100 100 RV 87/2 1" 3/4 20 cave 100 100
RV 83 1" 3/8 21 cave 80 80 RV 88 1" 3/8 21 cave 80 80
RV 84 1" 3/8 130 130 RV 89 1" 3/8 130 130



Prise de force pour pompes hidrauliques



Pivot cannele

numero CATOR profilo esterno foro cava lunghezza totale mm. numero CATOR profilo esterno lunghezza totale
RV 165 1" 3/8 22 6X3,5 100 RV 91 1" 1/8 100
RV 166 1" 3/8 22 6X3,5 75 RV 92 1" 3/8 100
    RV 93 1" 3/8 120

Pivot avec double prise de force

RV 93/21 1" 3/8 120 21 scanalature
RV 93/1 1" 3/8 150
numero CATOR profilo esterno lunghezza totale diametro e lunghezza tratto liscio rettificato in tolleranza H 7 RV 93/2 1" 3/8 200
RV 105 1" 1/8 300 30 X 170 RV 93/3 1" 3/8 250
RV 106 1" 3/8 300 35 X 170 RV 93/4 1" 3/8 300
RV 106/21 1" 3/8 300 35 X 170 21 scanalature RV 93/4.21 1" 3/8 300 21 scanalature
RV 106/150 1" 3/8 150 35 X 20 RV 93/320 1" 3/8 320
RV 106/200 1" 3/8 200 35 X 70 RV 93/400 1" 3/8 400
RV 106/250 1" 3/8 250 35 X 120 RV 93/5 1" 3/8 500
RV 106/400 1" 3/8 400 35 X 270 RV 93/6 1" 3/8 450
RV 106/430 1" 3/8 430 35 X 300 RV 94 1" 3/4 100
RV 106/500 1" 3/8 500 35 X 370 RV 95 1" 3/4 120 6 scanalature
RV 106/600 1" 3/8 600 35 X 470 RV 95/2 1" 3/4 120 20 scanalature
RV 106/1000 1" 3/8 1000 35 X 870 RV 95/2.300 1" 3/4 300 20 scanalature
RV 107 1" 3/4 300 45 X 160 RV 95/200 1" 3/4 200 6 scanalature
  RV 95/300 1" 3/4 300 6 scanalature

Manchons cannelees

RV 96 21 UNI 221 100
RV 97 23 UNI 221 100
numero CATOR profilo esterno profilo interno lunghezza totale mm. RV 98 26 UNI 221 100
RV 136 1" 3/8 1" 1/8 47,5 RV 99 26 UNI 221 100
RV 137 1" 3/8 1" 1/8 76 RV 100 28 UNI 221 100
  RV 101 28 UNI 221 100



Arbre cannele avec bride

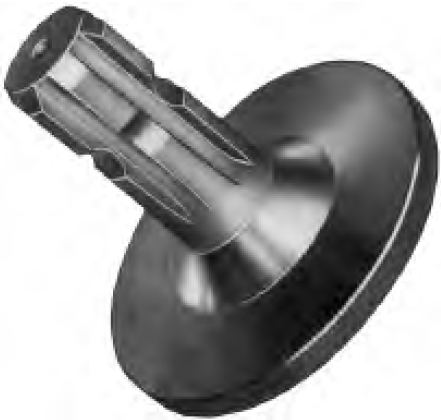

Arbre cannele avec bride

numero CATOR profilo esterno diam bride lunghezza totale mm. numero CATOR profilo esterno diam bride lunghezza totale mm.
RV 111 1" 1/8 120 113 RV 110 1" 3/8 70 90
RV 112 1" 3/8 120 113
RV 113 1" 3/4 120 120

Boite avec prise de force

RV 113/2 1" 3/4 20 scanalature 120 120
RV 112/21 1" 3/4 21 scanalature 120 113
RV 115 1" 3/8 114
RV 115/1 1" 3/8 21 scanalature 114
RV 116 1" 3/4 114
RV 116/2 1" 3/4 20 scanalature 114
RV 117 1" 3/8 85
RV 118 1" 3/4 85
RV 118/2 1" 3/4 20 scanalature 85
RV 119 1" 3/8 21 scanalature 85
RV 126 1" 3/8 6 scanalature
RV 126 1" 3/8 21 scanalature
RV 127 1" 3/4 6 scanalature
RV 127/2 1" 3/4 20 scanalature
RV 130 1" 3/8
RV 130/21 1" 3/8 21 scanalature
RV 131 1" 3/4
RV 131/2 1" 3/4 20 scanalature
RV 133 1" 3/8
RV 134 1" 3/4
RV 134/2 1" 3/4 20 scanalature
